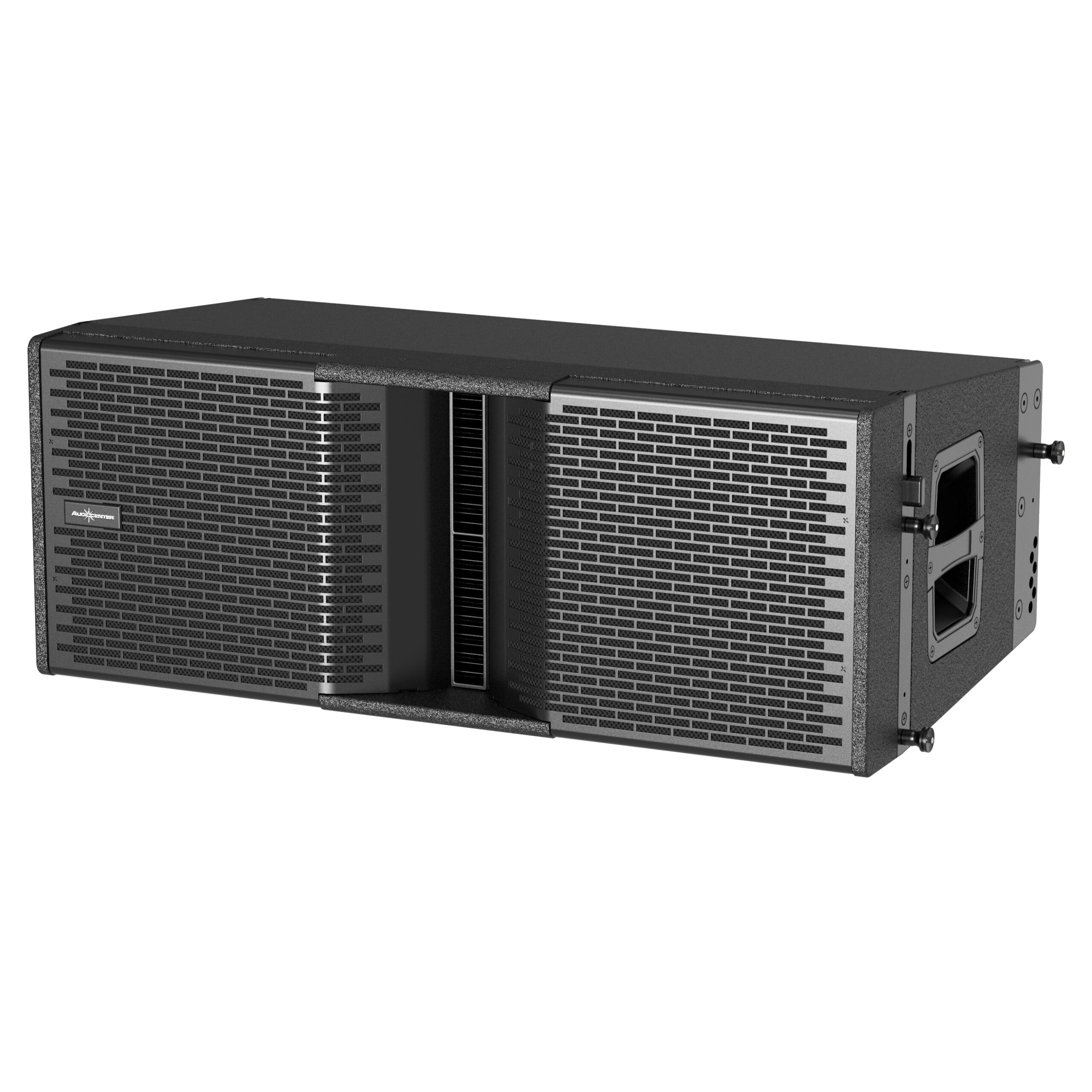

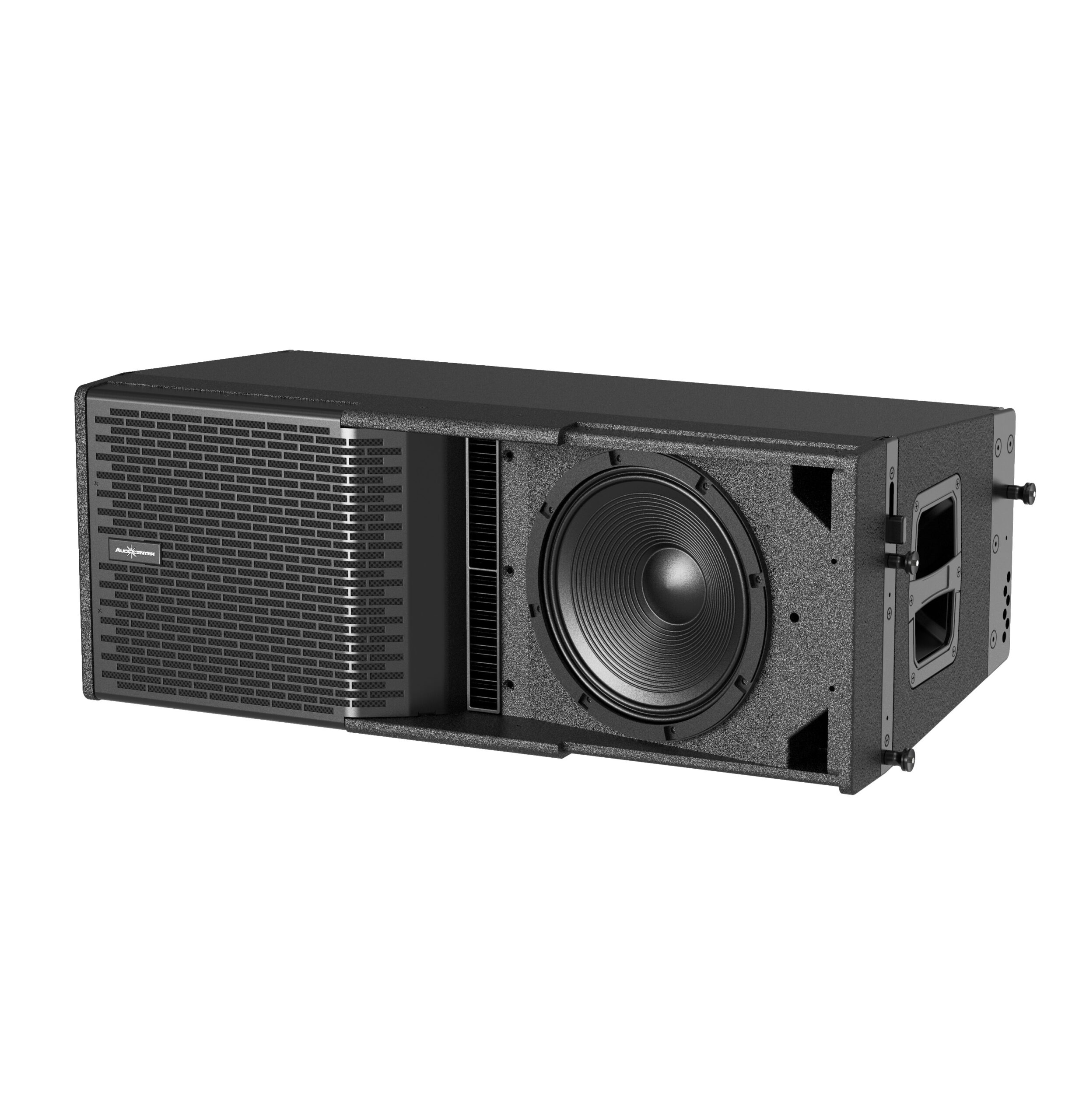

♦ Type : Dual 10” two-way active DSP controlled line array loudspeaker
♦ Frequency Response(-10dB) : 40Hz-20kHz
♦ Horizontal Coverage : 90°
♦ Vertical Coverage : Splay angle dependent
♦ Maximum Calculated SPL/1M (Continuous/Peak) : 126dB/132dB
♦ HF : Customized driver, 2×1.75” voice coil,1.0” exit

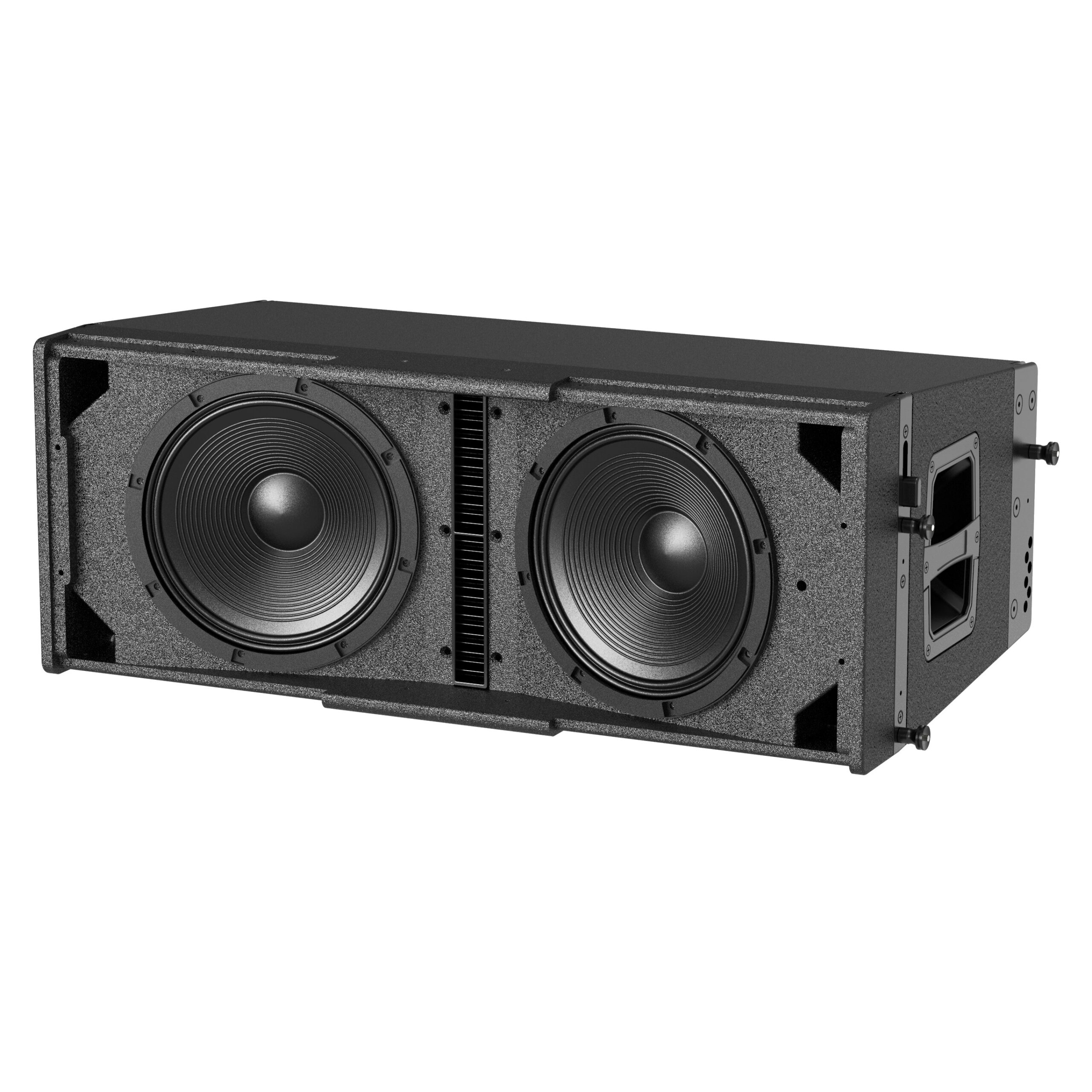

♦ LF : Customized 2×10” driver, 2.5”voice coil
DSP :
♦ Processor : 96kHz signal sampling frequency, FIR filtering
♦ Presets : LINEAR,2 Units,W/SUB

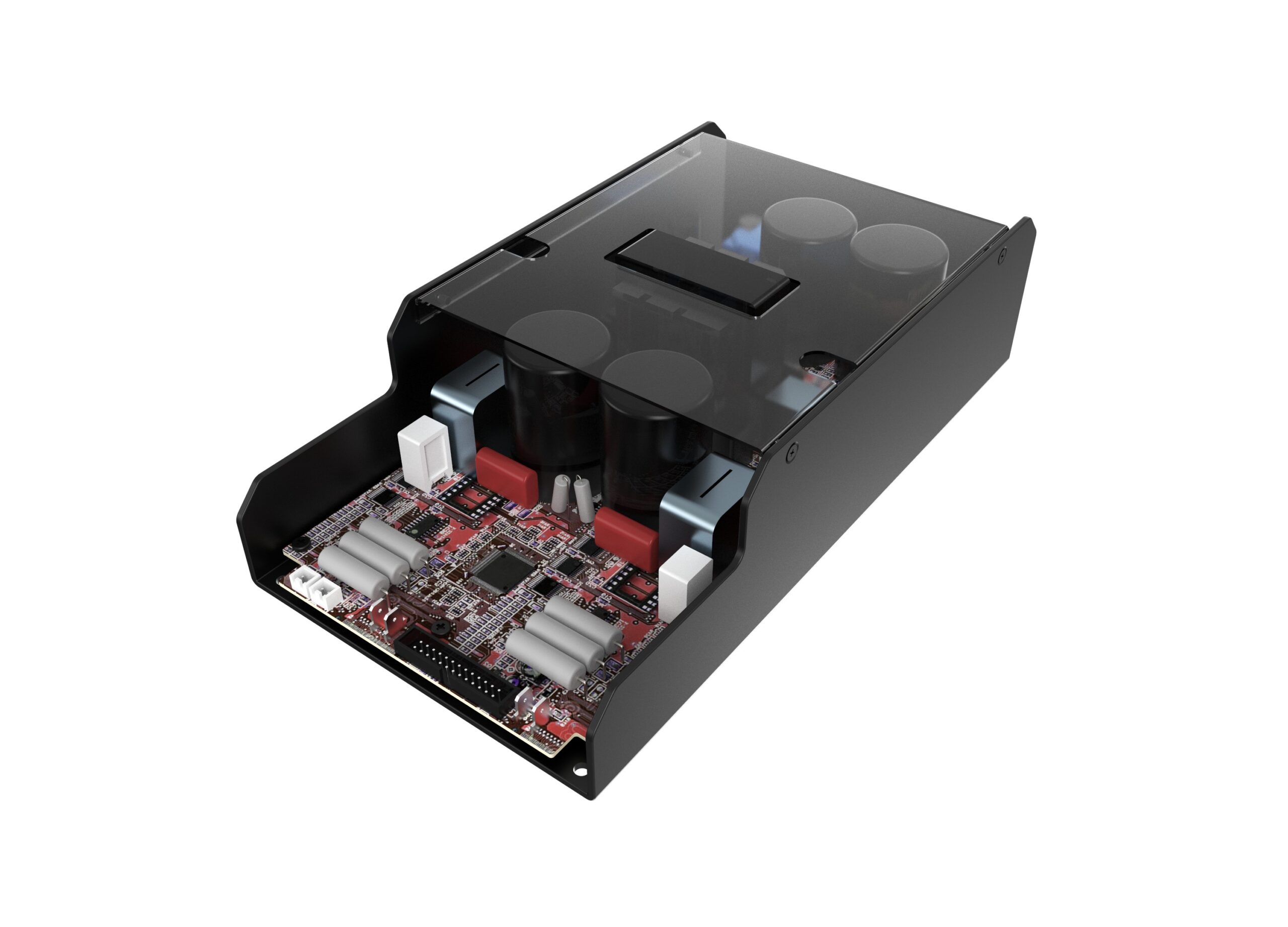

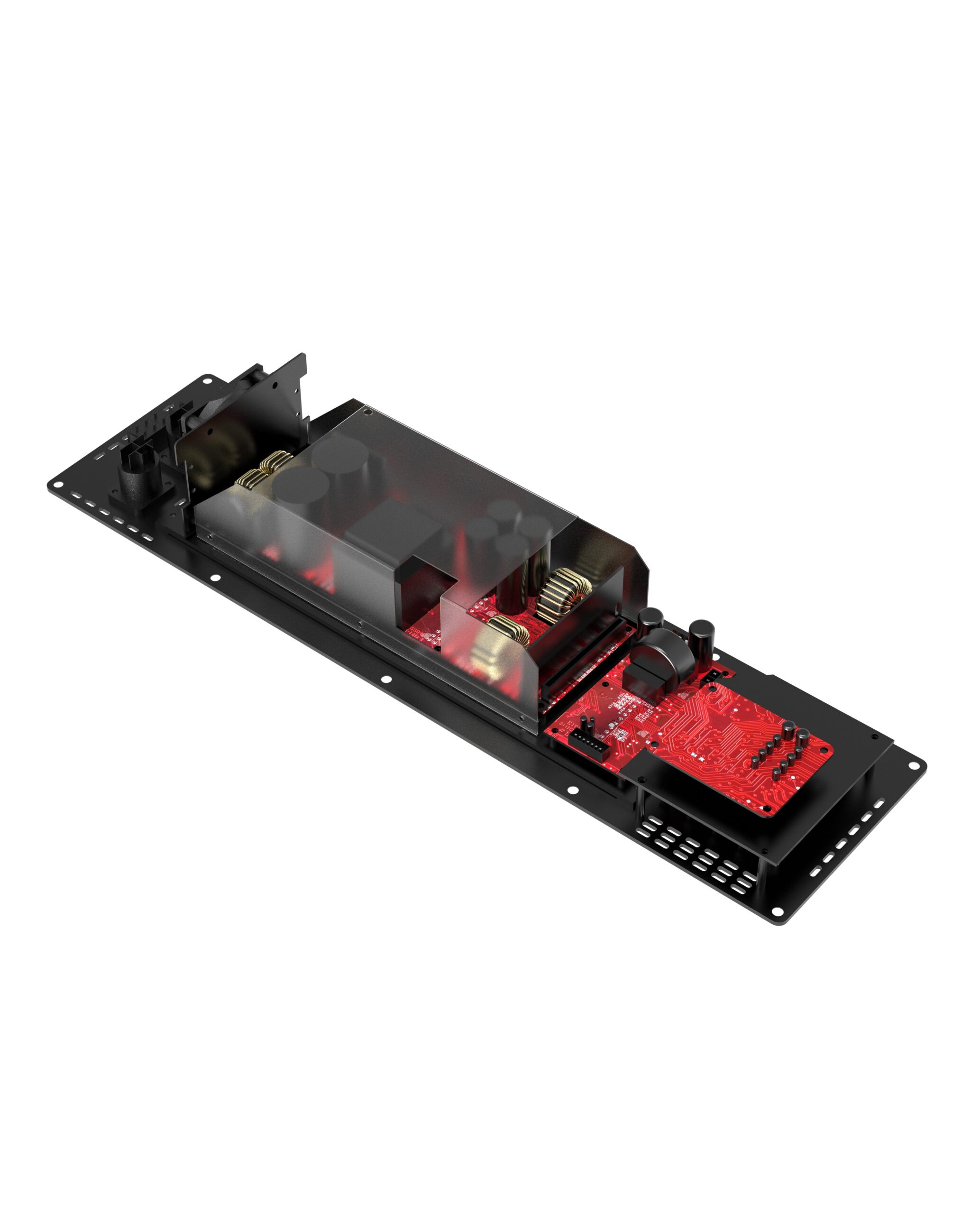

AMPLIFIER :
♦ Amplifier Circuitry : Class D
♦ Power(RMS standards) : 1600W
♦ Peak Power : 3200W
♦ Frequency Response(1W 8Ω 2ch) : 20Hz-20kHz(±0.5dB)
♦ Intermodulation Distortion (20Hz-20kHz, half power) : ＜0.05%
♦ Total Harmonic Distortion (20Hz-20kHz，Rated power 8Ω) : ＜0.05%
♦ Cooling System : Cooling with fans
♦ Protection : DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection

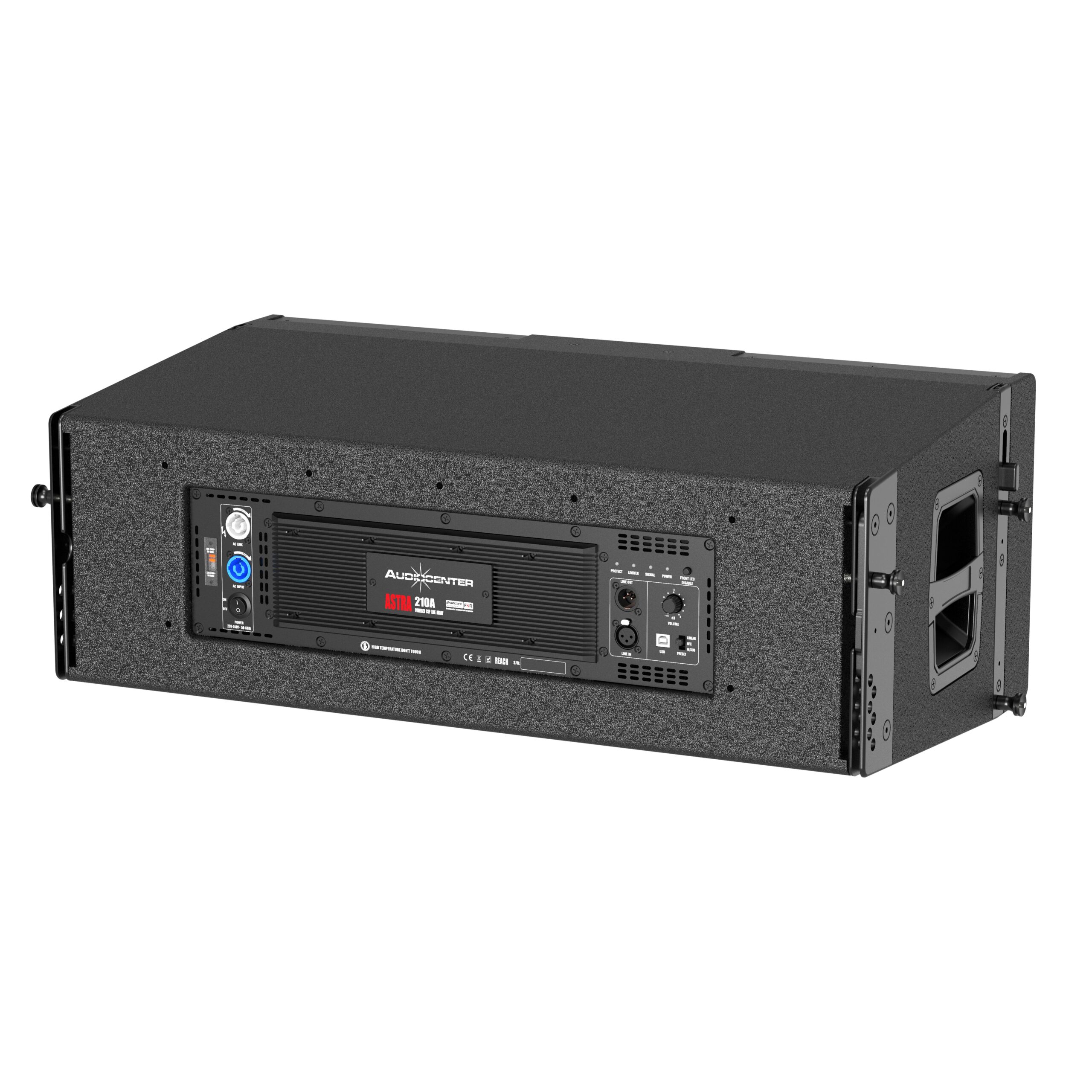

♦ Signal Input Connectors : Female XLR
♦ Signal Output Connectors : Male XLR
♦ Power Input Connectors : Power connector
♦ Power Output Connectors : Power connector
♦ AC Power Operating Range : 100V-130V~ or 220V-240V~(±10%,50/60Hz)
♦ Power consumption(1/8 output power) : 117W
CABINET :
♦ Cabinet Material : CNC made of excellent wood

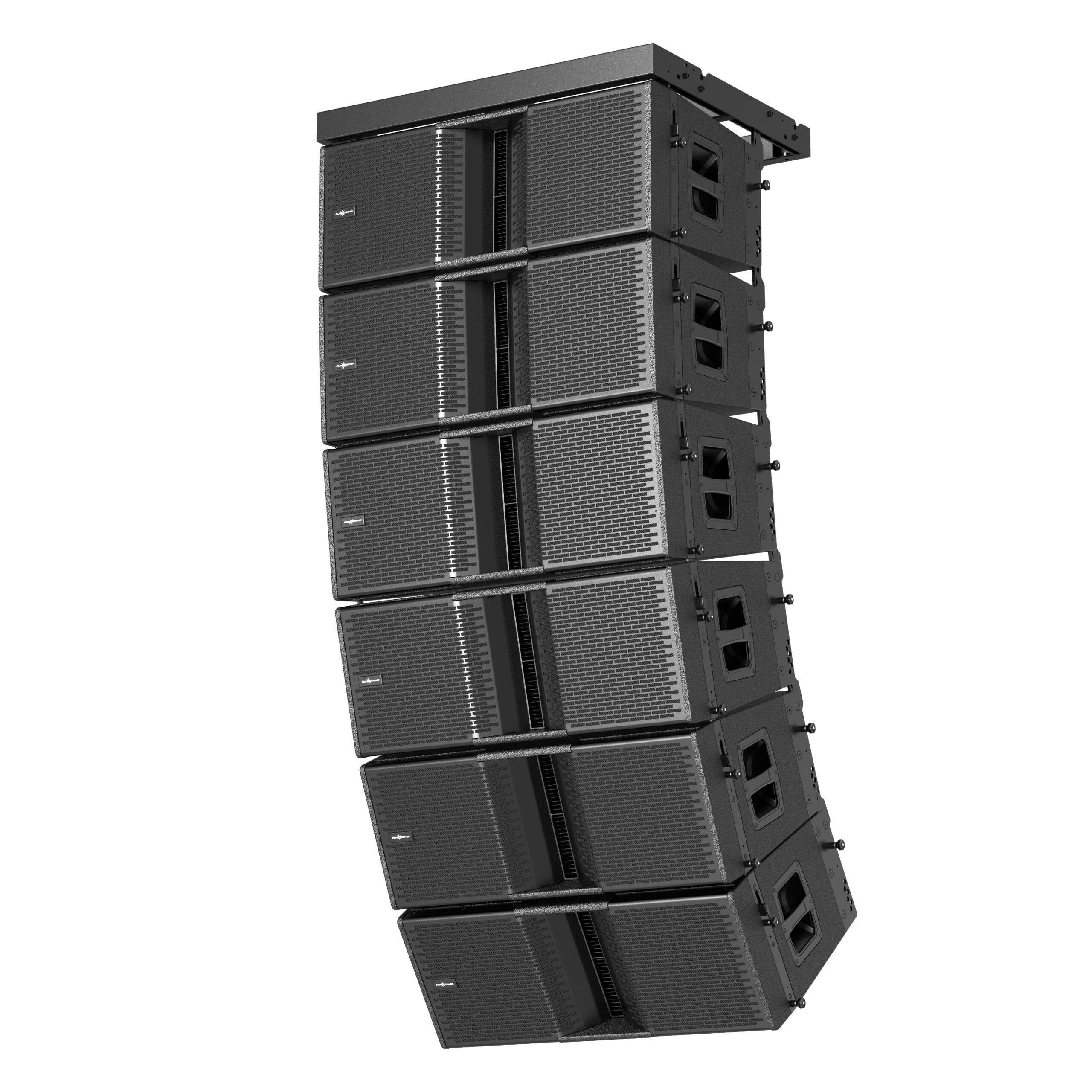

♦ Angle Adjustment : 0°,2°,4°,6°,8°,10°
♦ Coating : Durable Polyurea Coating
♦ Cabinet Color : Black is the default color. Contact Audiocenter for customization

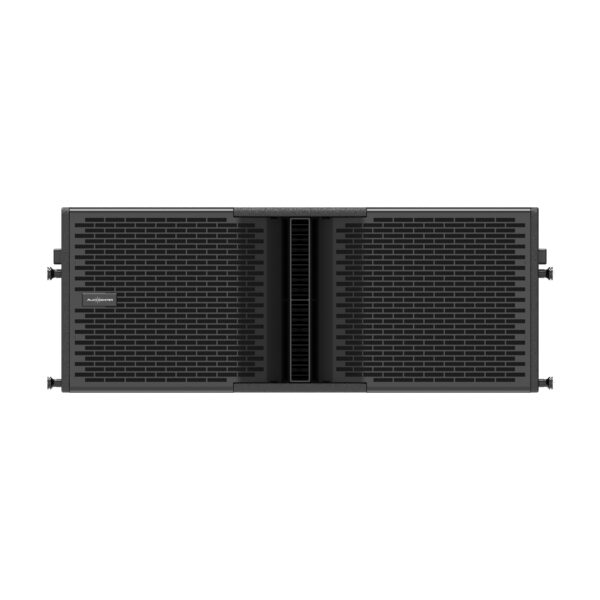

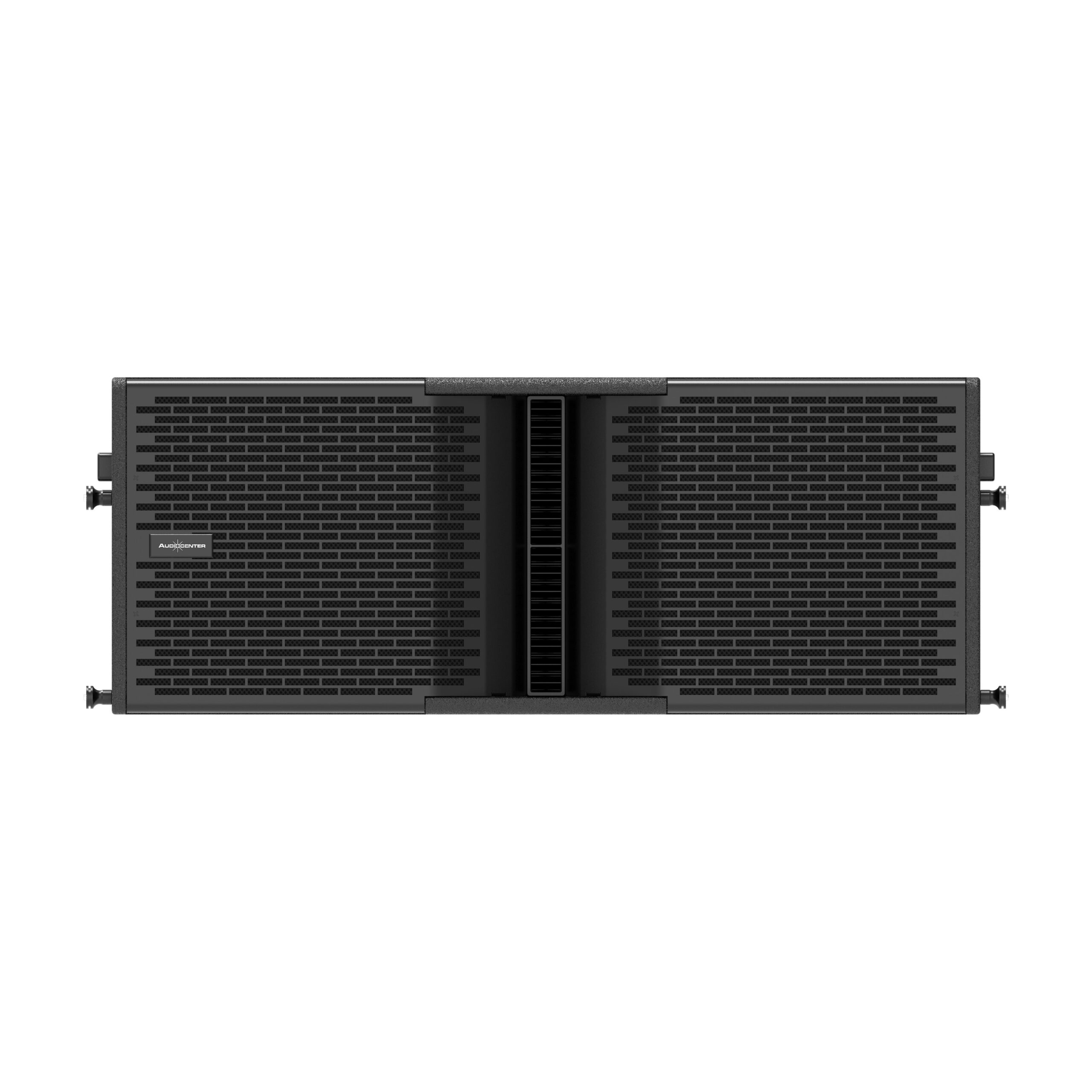

♦ Grille : Iron mesh
♦ Handles : 2 side,2 rear

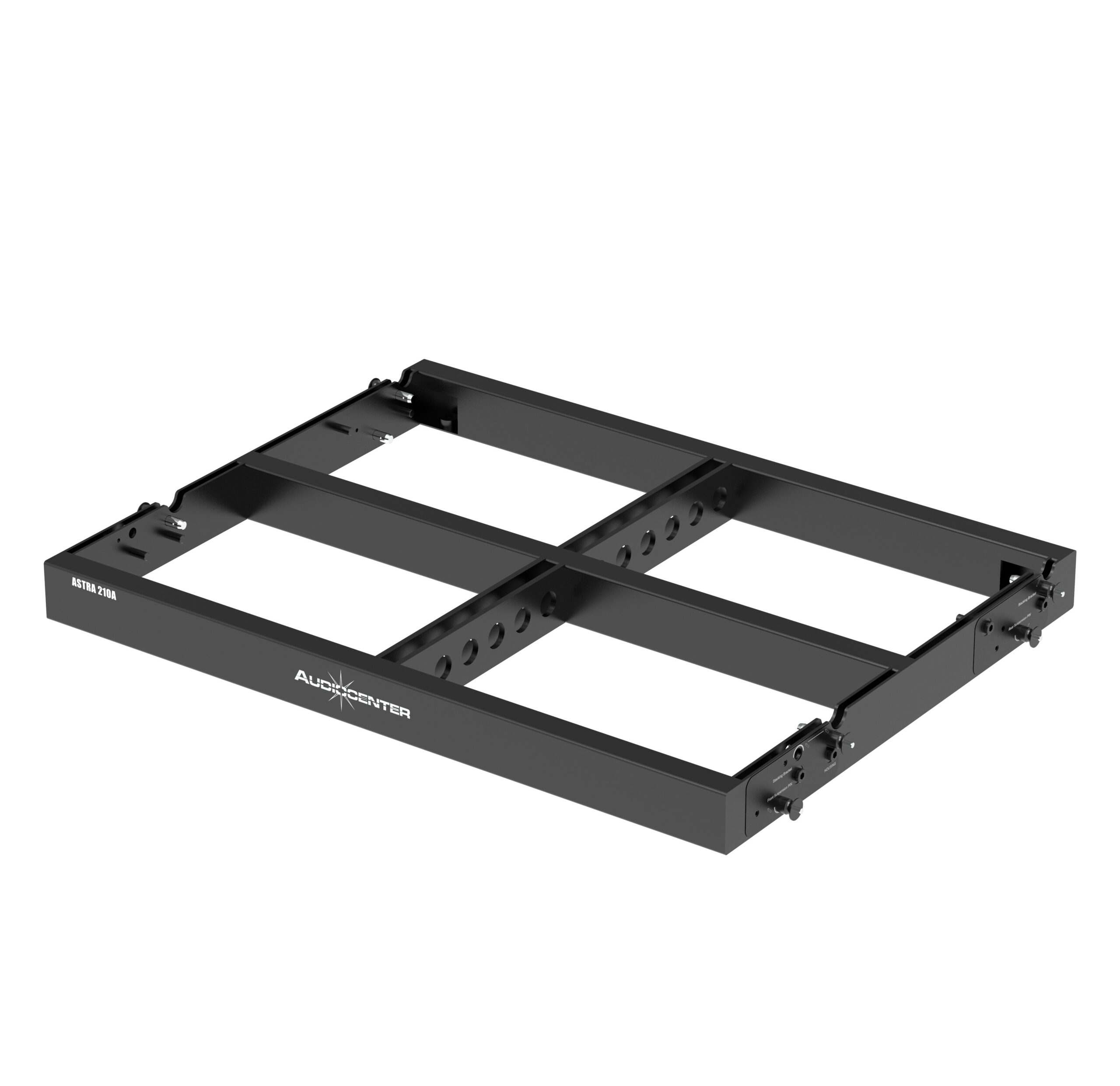

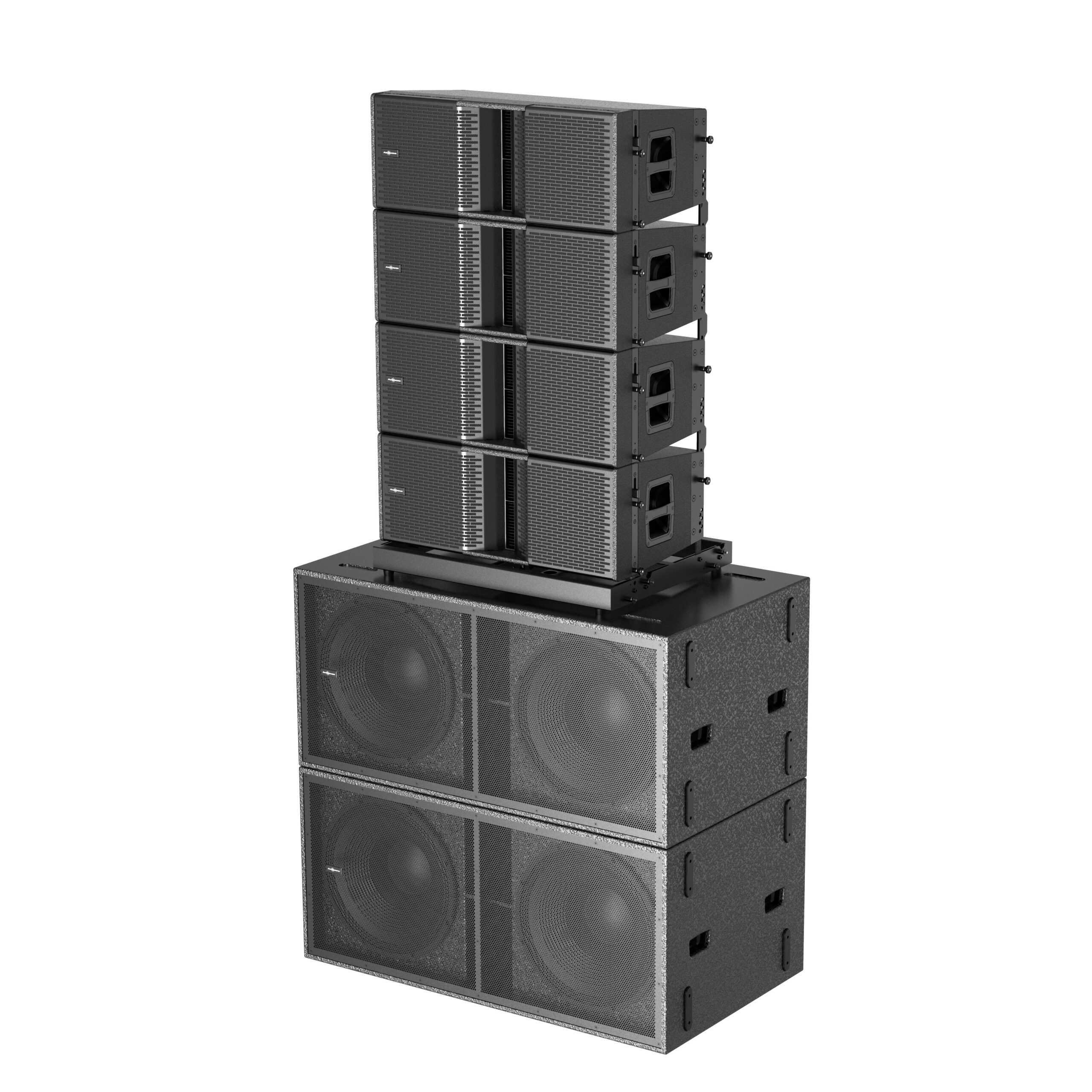

♦ Optional Accessories : Frame for flying and ground stacking / Flightcase with 100mm wheels / Rain bag / Dolly
♦ Speaker Dimension(W×H×D) : 760×295×412mm
♦ Carton Dimensions (W×H×D) : 899×374×595mm
♦ Net Weight : 30.0kg
♦ Shipping Weight : 34.0kg
Warranty (years): 2
