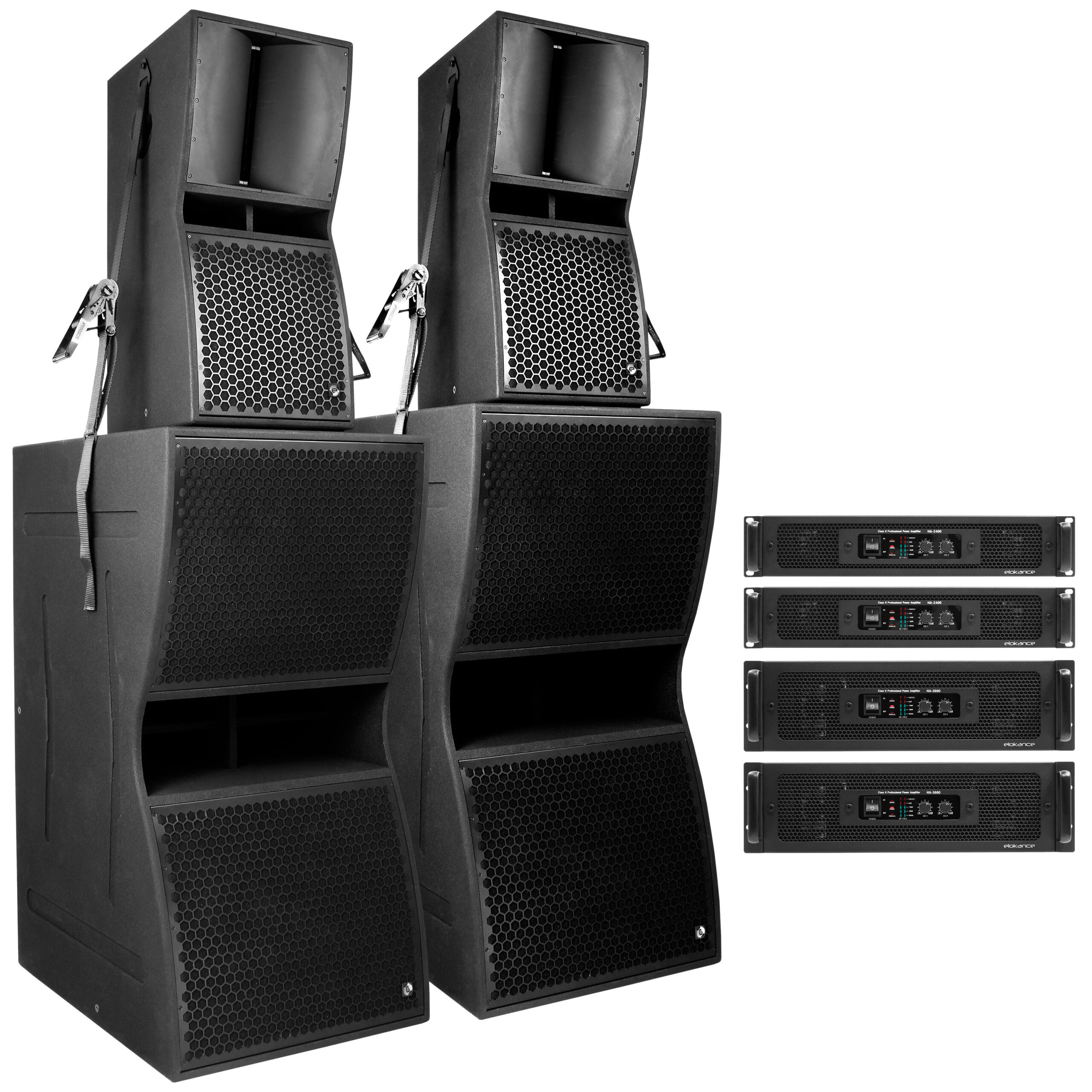

# elokance OS System
# PA system specially designed for outdoor applications

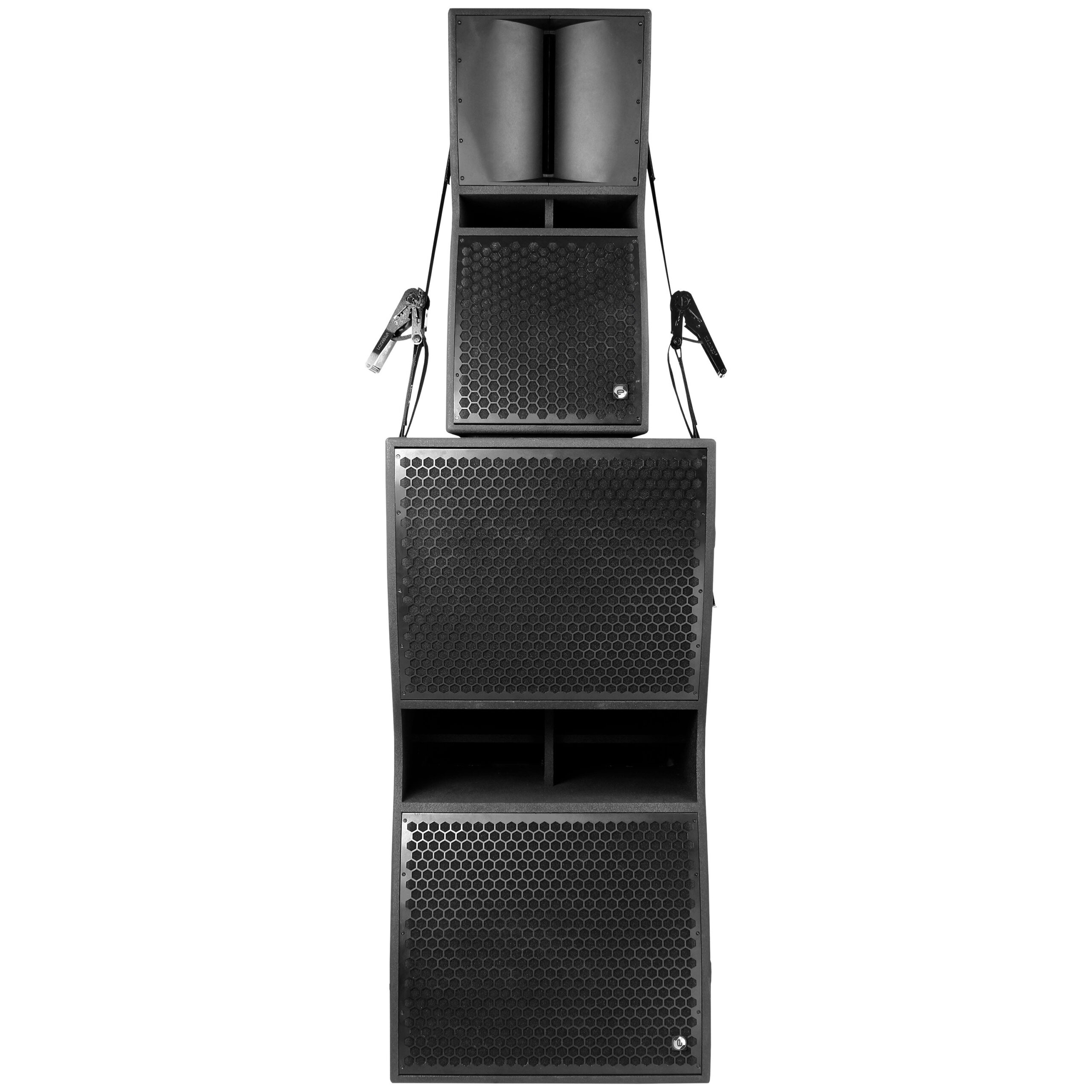

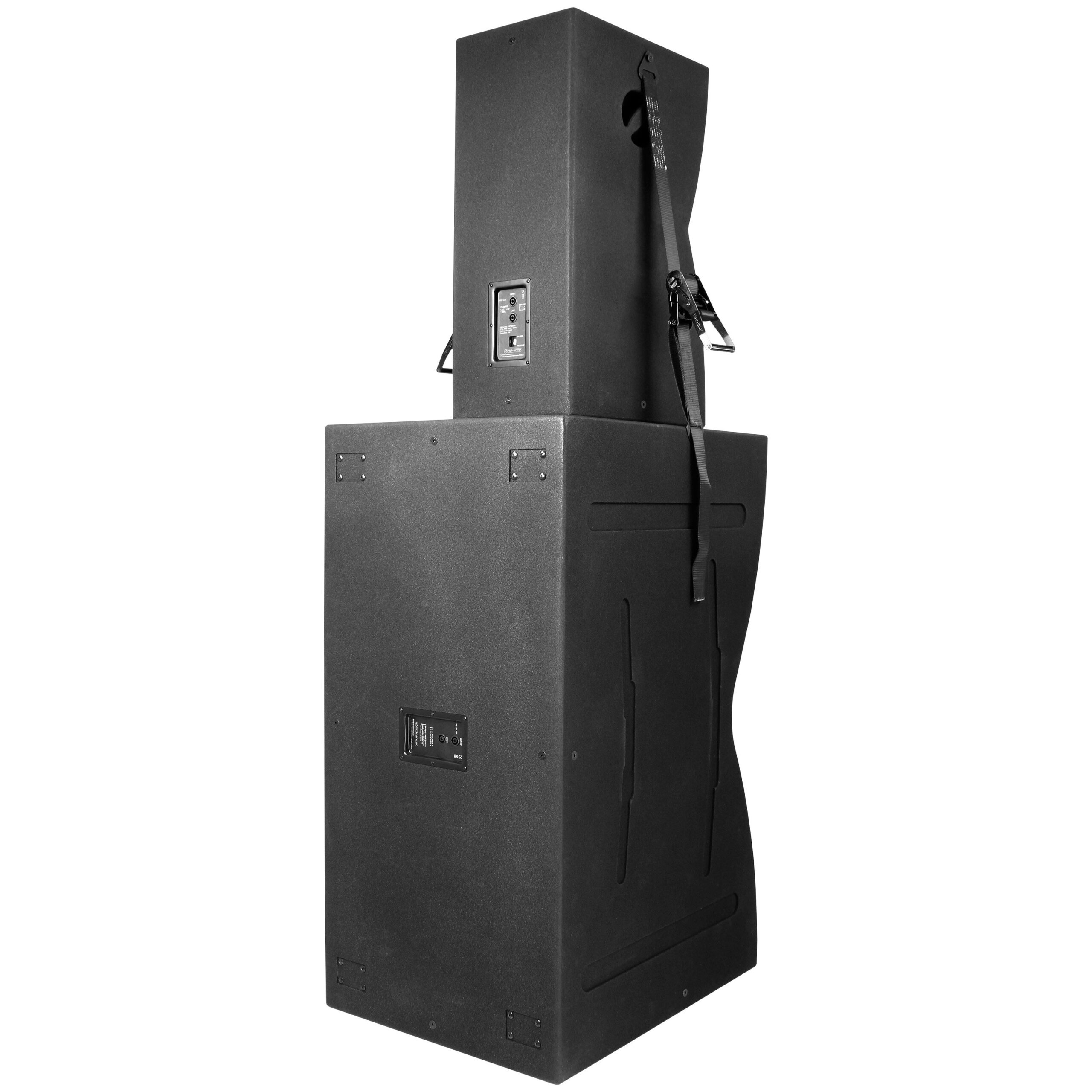

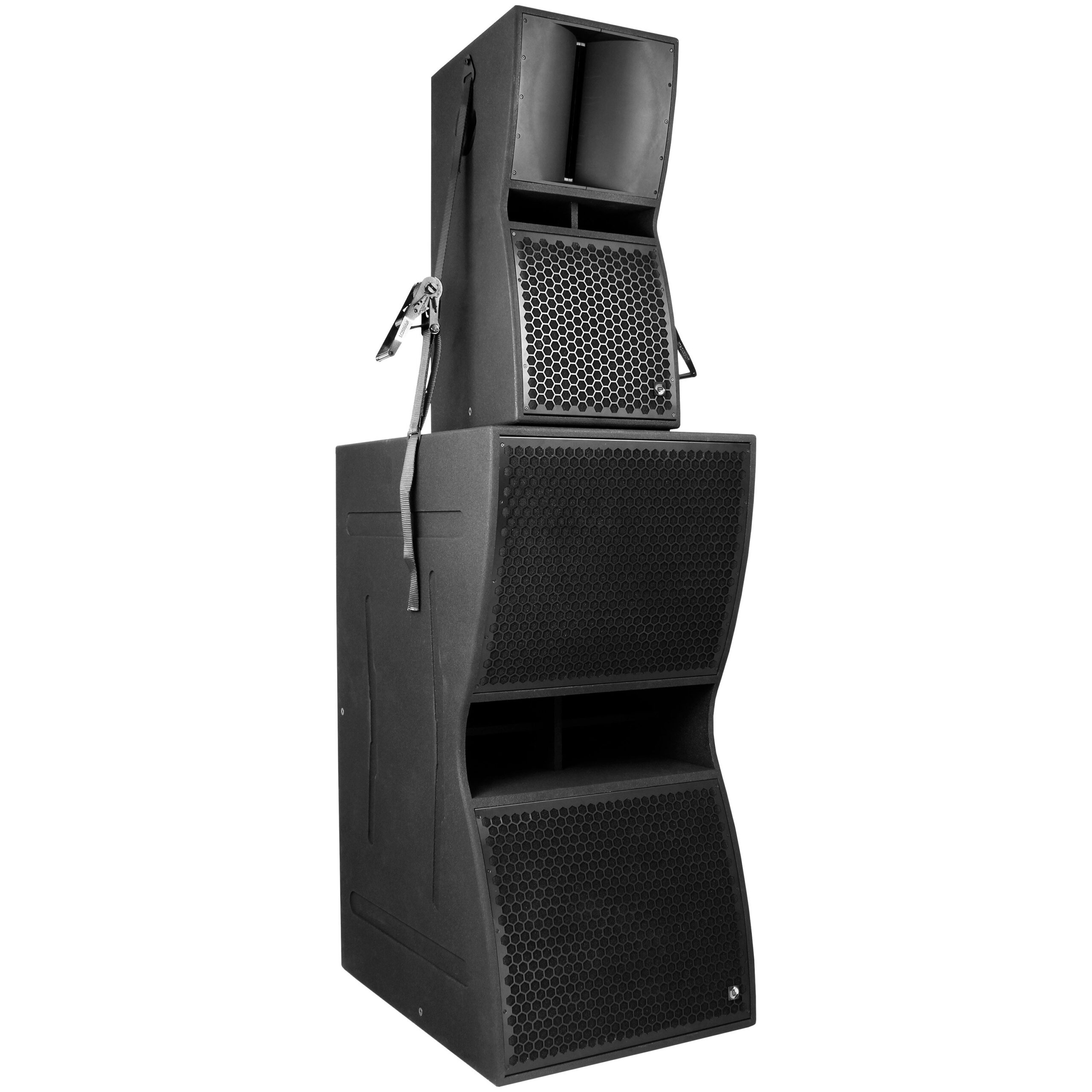

# Passive system consisting of 2 x 21” double subwoofers and 2 x 15” heads
# Total power 7600 W
# Sat operating frequency range: 50 Hz # 18 kHz
# Sub frequency range: 22 Hz # 120 Hz
# Frequency response: 22 Hz # 18 kHz (@#10 dB)
# Maximum sound pressure level (SPL) 136 dB / 147 dB (peak)
# Horizontal coverage @2 kHz: 102°
# Vertical coverage @2 kHz: 30°
# Horizontal coverage >1 kHz: 90°
# Vertical coverage >1 kHz: 30°
# HF transducers: 4.5” neodymium, 1.4” output with 3#way voice coil
# MF transducers: 15” : neodymium with 3 inch voice coil
# BF transducers : 2x 21” with 5” voice coil
# Sat input impedance : 8 Ω
# Sub input impedance : 2x 8 Ω
# Sat power : 800 W RMS
# Sub power : 3000 W RMS

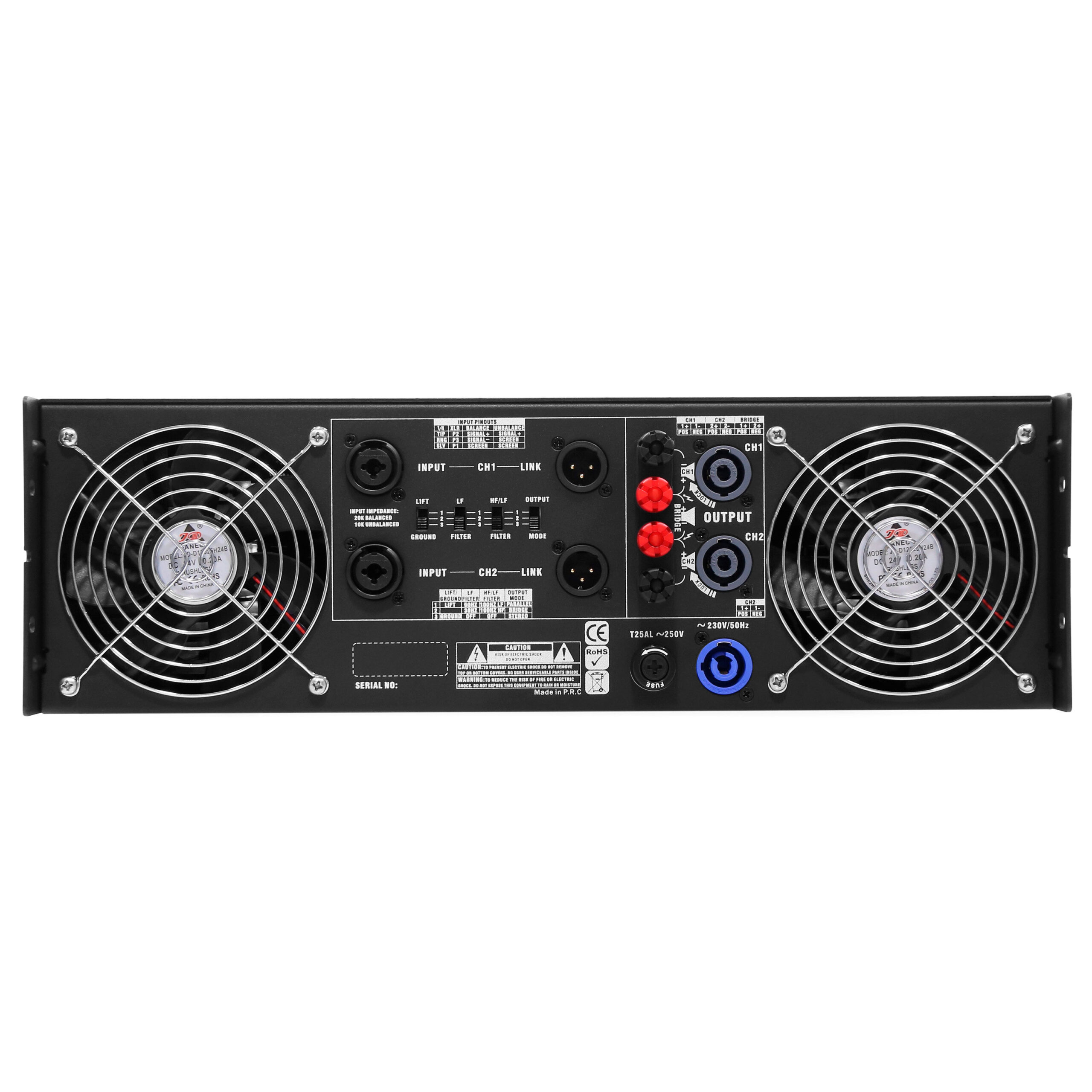

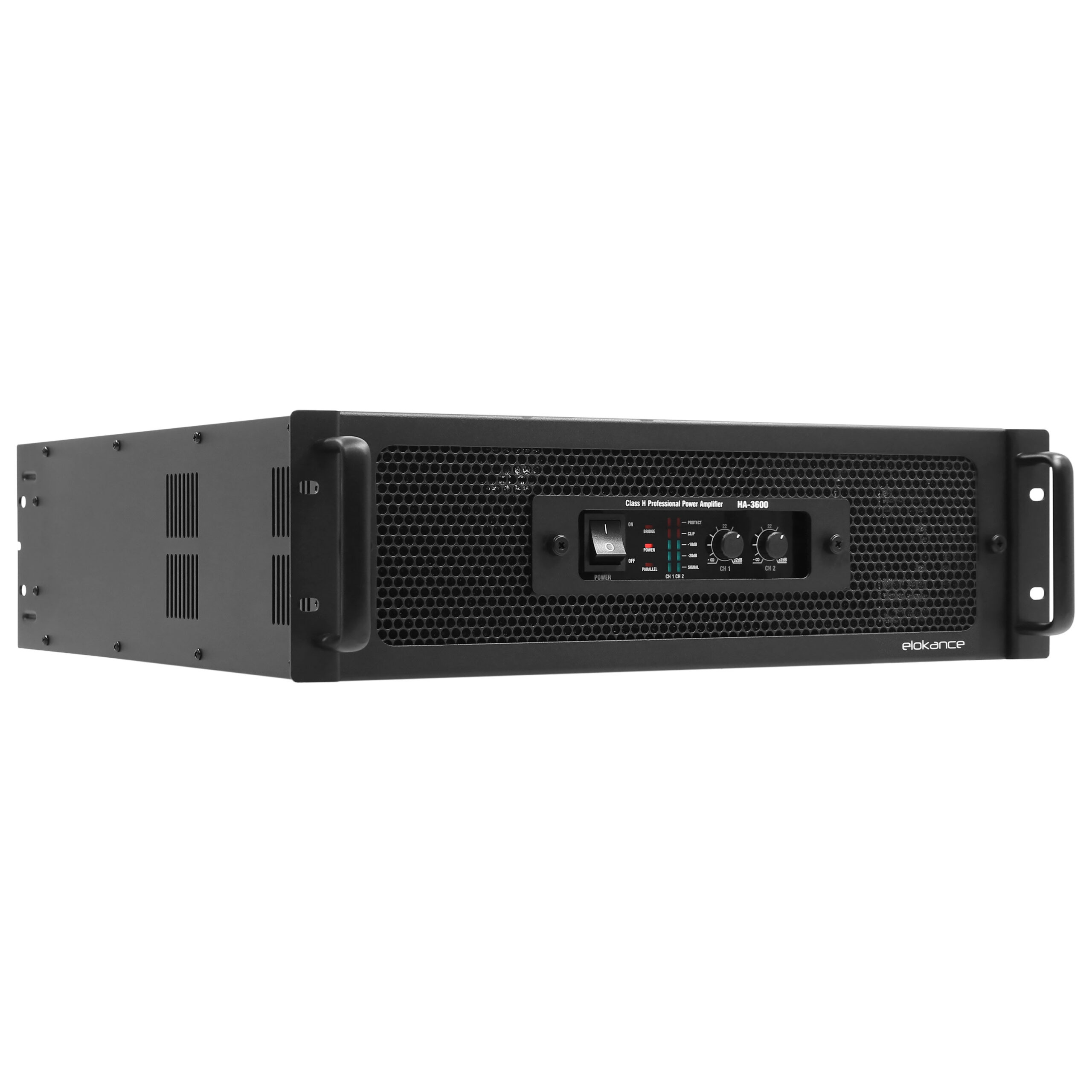

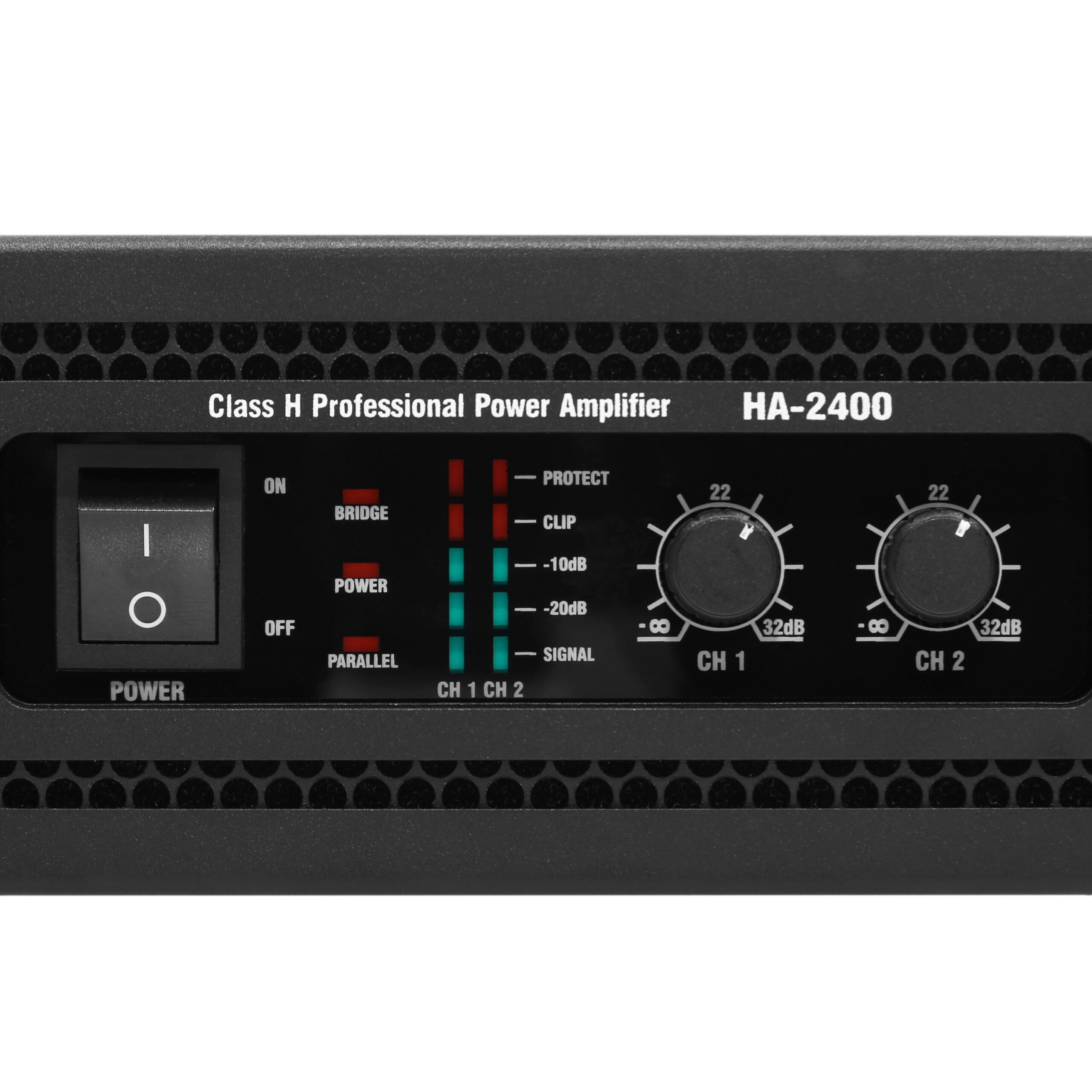

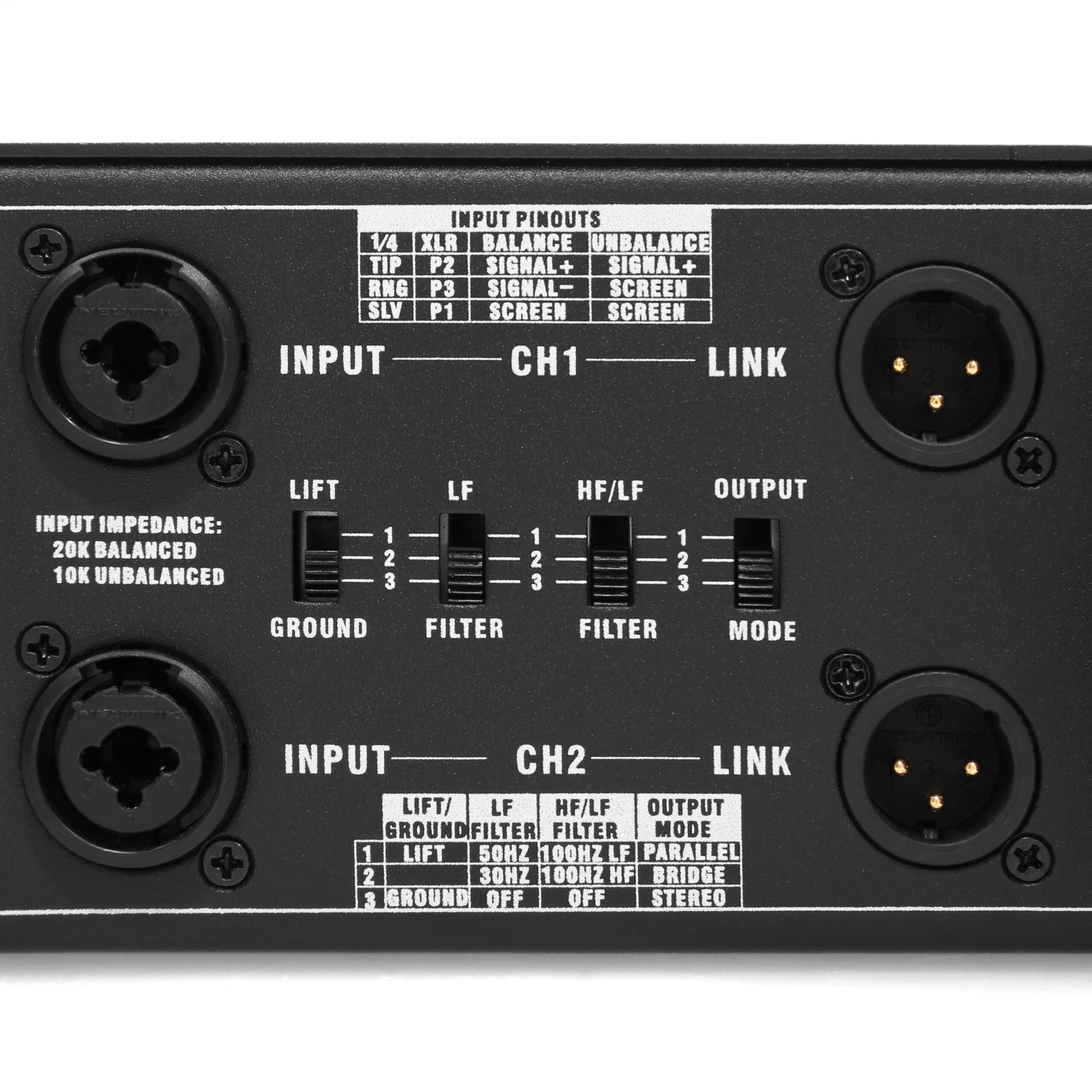

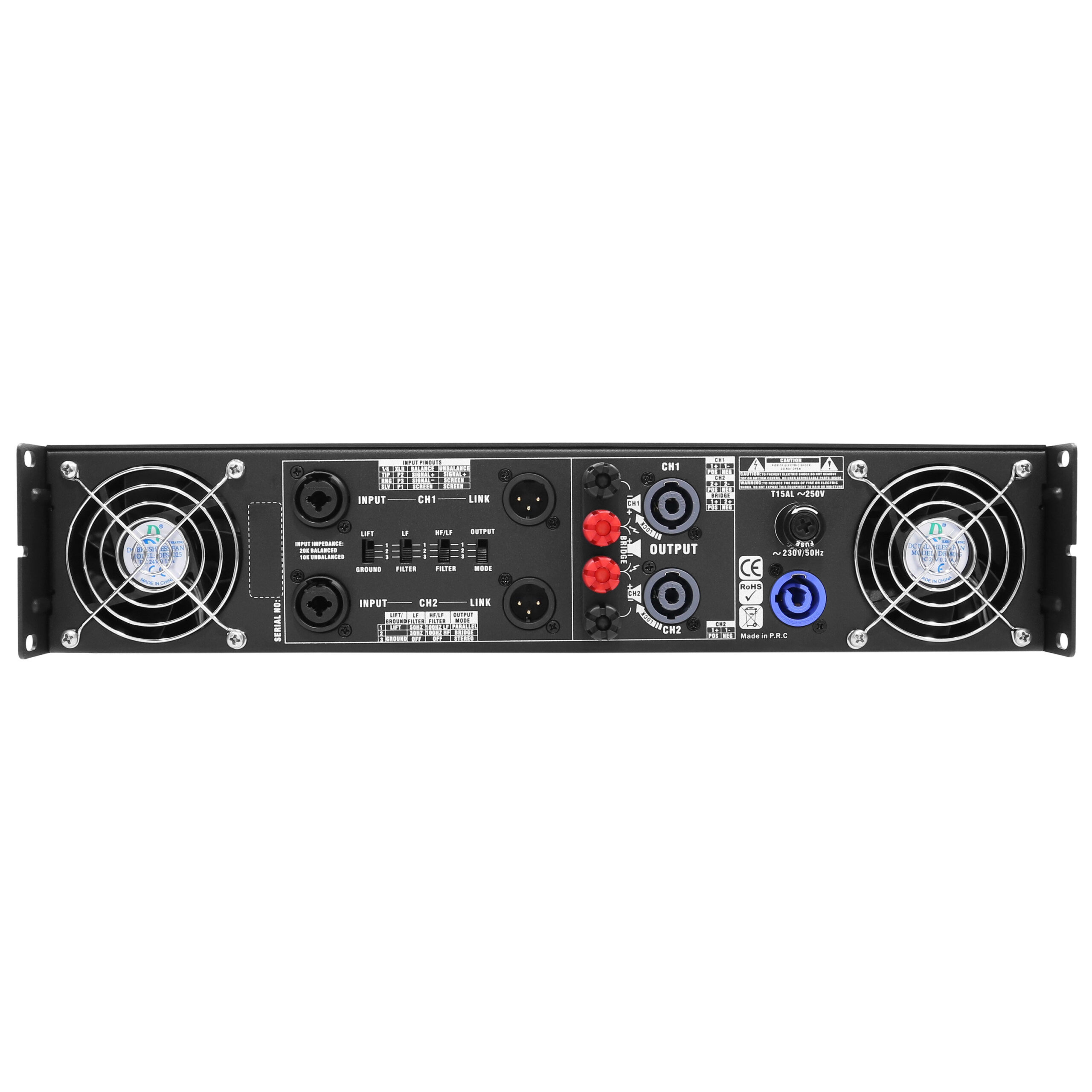

# Amplifiers supplied : 2x elokance HA3600 + 2x elokance HA2400
# Sat dimensions : 940 x 540 x 445 mm
# Sub dimensions : 1400 x 900 x 715 mm
# Sat weight :
# Structure : 18 mm and 20 mm plywood
# Finish : textured paint
Warranty (years): 2
