Elokance – ELO 800C PA set, 800W/1600W

# ELOKANCE ELO 800C

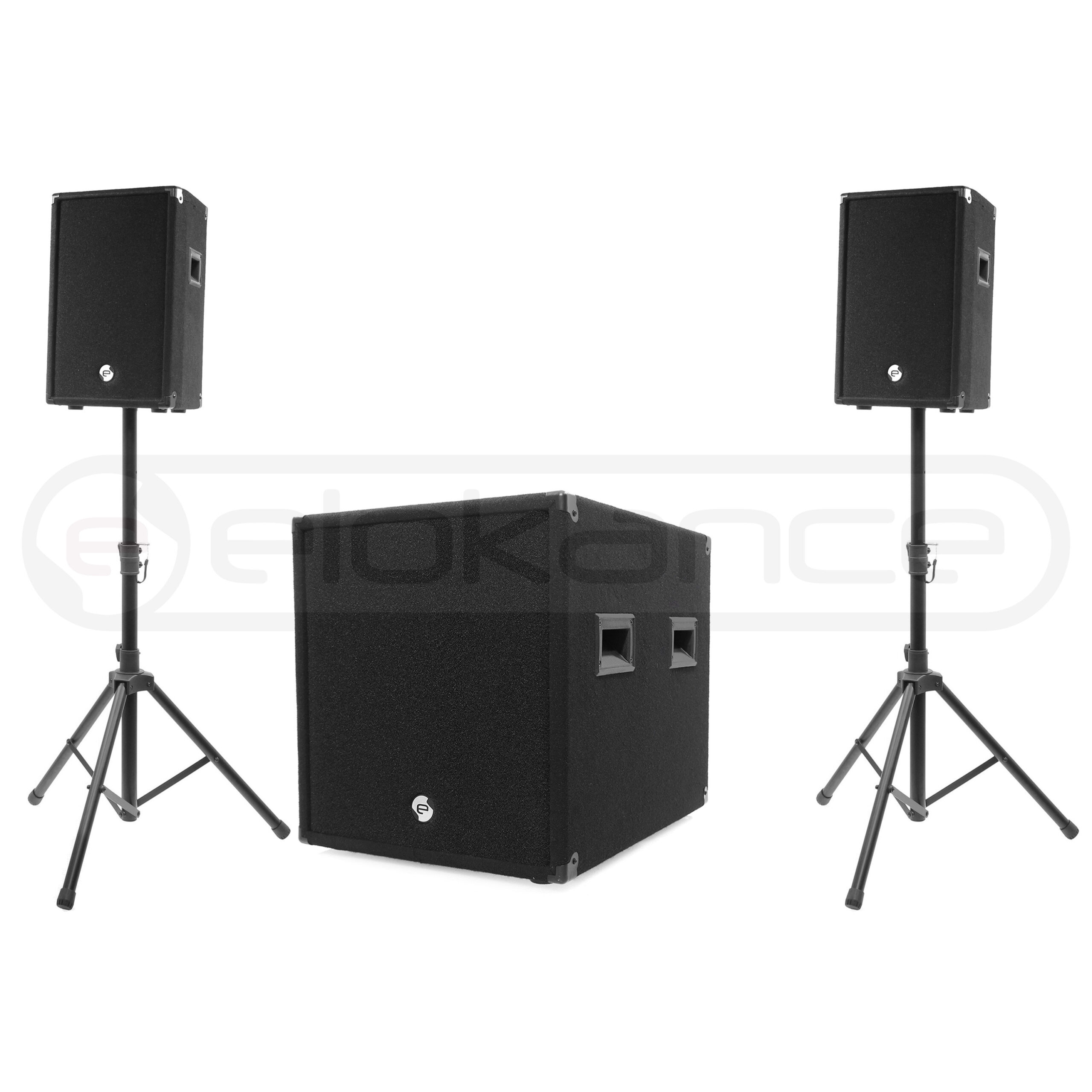

# High end Triphonic package consists of 2 ELO 10C and 1 ELO SUB15AC

# Total power of 800W RMS

# Carpeted finish

# Technical features

# Elokance ELO 10C

# Elo range

# Passive loudspeaker

# 10” speaker driver (25cm)

# 1 inch coil compression tweeter (25mm)

# Power : 200W RMS / 400W Peak at 8 Ohms

# Bandwidth @#10dB : 65Hz#19Khz

# SPL Max : 127 dB

# Sensitivity (1W/1m) : 97 dB

# Cutoff frequency of the filter : 2.5 Khz

# Input connectors: 1 x Speakon

# Speaker stand flange: 35mm

# 2 Carrying handles

# Carpeted finish

# Dimensions of one speaker: 320 x 280 x 485 mm

# Weight of one speaker: 12 kg

#

# Elokance ELO SUB15AC

# Elo range

# Active subwoofer (amplified)

# ”D#class” amplification

# 1 speaker driver of 15” (38cm)

# Power : 500W RMS

# Amplifier 2 x 150W RMS for satellites outputs

# Bandwidth @#10dB : 35Hz#20Khz

# Limiter and protections against short#circuit or overheating.

# XLR/Jack 6.35mm Inputs

# Speakon Outputs, with curve switch depending on the satellites you are using

# Separate level controls for Right/Left/Sub.

# Ground/Lift selector

# Mono/Stereo selector to use 2 satellites outputs on one channel.

# Curve selector 0/180° for the subwoofer

# Speaker stand flange of 35mm

# 2 carrying handles on the sides

# Carpeted finish

# Dimensions of the subwoofer: 450 x 580 x 486 mm

# Weight of the subwoofer: 38 kg

#

# Delivered with 2 loudspeaker stands and 2 Speakon cables Elokance of 5m ELO SPEAKON

#

# With a very good sound quality, the Elo series is also very convenient because of its evolving capacities: you can add almost as many satellites or subwoofers as you want!

# Carpeted finish

Warranty (years): 2
